Truck Mounted Portable Xray Machine
Price range: ₱1,200,000.00 through ₱1,500,000.00
Features:
- Using high frequency inverter technology to produce, stable high voltage output can obtain good image quality:
- With compact design, it is easy to carry and work in different areas and locations:
- There are three exposure control methods: remote control, hand switch and interface button type;
- Fault self-diagnosis and self-protection:
- With a flexible digital interface, users can go deep into the core programming control and can be adapted to different DR detectors.
Parameters:
- 5KW portable X-ray machine
- Maximum power: 5KW
- Photography KV range: 40-50KV, 40-60KV, 40-80KV, 40-100KV, 40-110KV
- Photography mA range: 100mA, 80mA, 63mA, 50mA, 32mA
- mAs range: 0.32-300 mAs
- Exposure time range: 0.01-6.3s
- Operating frequency: >30 kHz
- Input power type: 220V ± 10%, 50Hz/60Hz
- Input power type: 37 (L) x26 (W) X23 (H) cm
- Weight: 21KG

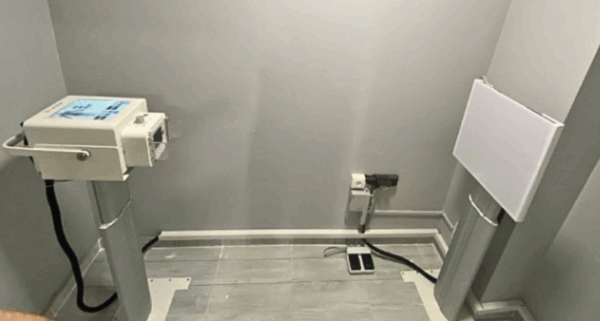

- X-ray Image Stand and Tube Pillar: Radio-graphic device movement along pillar 1400 mm ± 5%: Focus distance: 130 cm ± 5%: Fixed grid optional: Grid density 103L/INCH, grid 10:1 ；SID 180cm；Size: 15″×18″
| No. | Part Name | PCs | Remark |
| 1 | One Pillar for Tube | 1 Set | |
| 2 | One Pillar For Digital Flat Panel | 1 | |
| 3 | Portable X-ray | 1 | 100ma 220V，60Hz |
| 5 | Frame | 1 | |
| 6 | Power Cable | 1 | 220 V, 60Hz |
| Optional | Flat Panel Detector | 1 | |
| Optional | Image Software Workstation | 1 | Computer, monitor |
| Optional | X-Ray Grid | 1 | JPI103 |
Additional Info
- PRICE IS VAT EXCLUSIVE
- SHIPPING FEE C/O BY BUYER
- PAYMENT TERMS FOR PRE-ORDER: BANK TRANSFER (Required 50% dp upon purchase)
- FULL PAYMENT & BANK TRANSFER, IF PRODUCT IS AVAILABLE
- WARRANTY: 6 MONTHS AGAINST FACTORY DEFECT, EXCLUDING ACT OF GOD & HUMAN ERROR.
