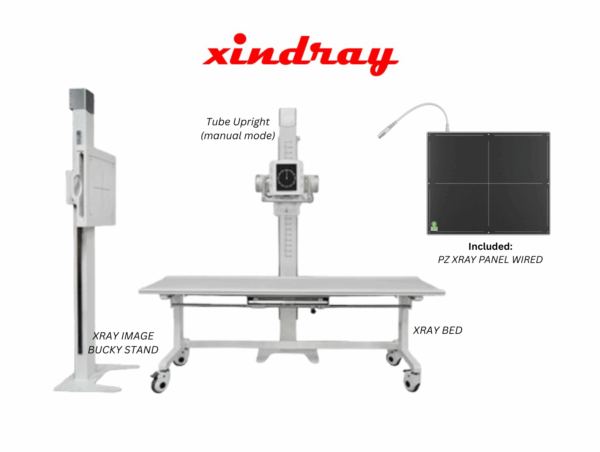

Digital X-ray Machine 400MA
₱1,500,000.00
Application
Applicable to orthopedics, emergency room, operating room, etc. As human head, limbs, chest, spine, lumbar spine for medical diagnosisFeatures
- Rich DR upgrade reserve interface
- Fault self-diagnosis and protection
- Automatic calibration of tube current
- X-ray tube has the function of filament dormancy
- AEC function, different ionization chamber as optional
- Analog - digital double - loop control, simple operation, high intelligence
- High kV, high current, high power, strong penetration, able to handle obese patients
Technical specification
- X-ray generator (include console) Output Power 32KW Power Voltage 220V ± 22VkV Range 40~125kVmA Range 32~400mA mAs Range 0.32~400mAs Exposure time 0.002~6.3S
- X-ray tube Anode Heat Storage Capacity 240kHU Small focus 0.6 Large focus 1.2 Anode speed 3000r/min
- Collimator Inherent filtration 1.0mm Al /75kVLight Source LED
- Radiographic Table Top Table Size 2100 X 800 X 650mm Bucky Size 18 X 18 inch Table longitudinal movement ≥ 900mm Cassette Movement Distance ≥ 500mm
- Vertical Chest stand Vertical moving range ≥ 1200mm Bucky Size 18 X 18 inch
- Double Grid Size 18 X 18inch Ratio 1:1 F.D. 100cm Density 40 L/cm
Additional Info
- PRICES ARE VAT EXCLUSIVE
- PAYMENT TERMS: CASH or BANK FINANCING
- WARRANTY: 6 MONTHS AGAINST FACTORY DEFECT EXCLUDING ACTS OF GOD AND HUMAN ERROR
