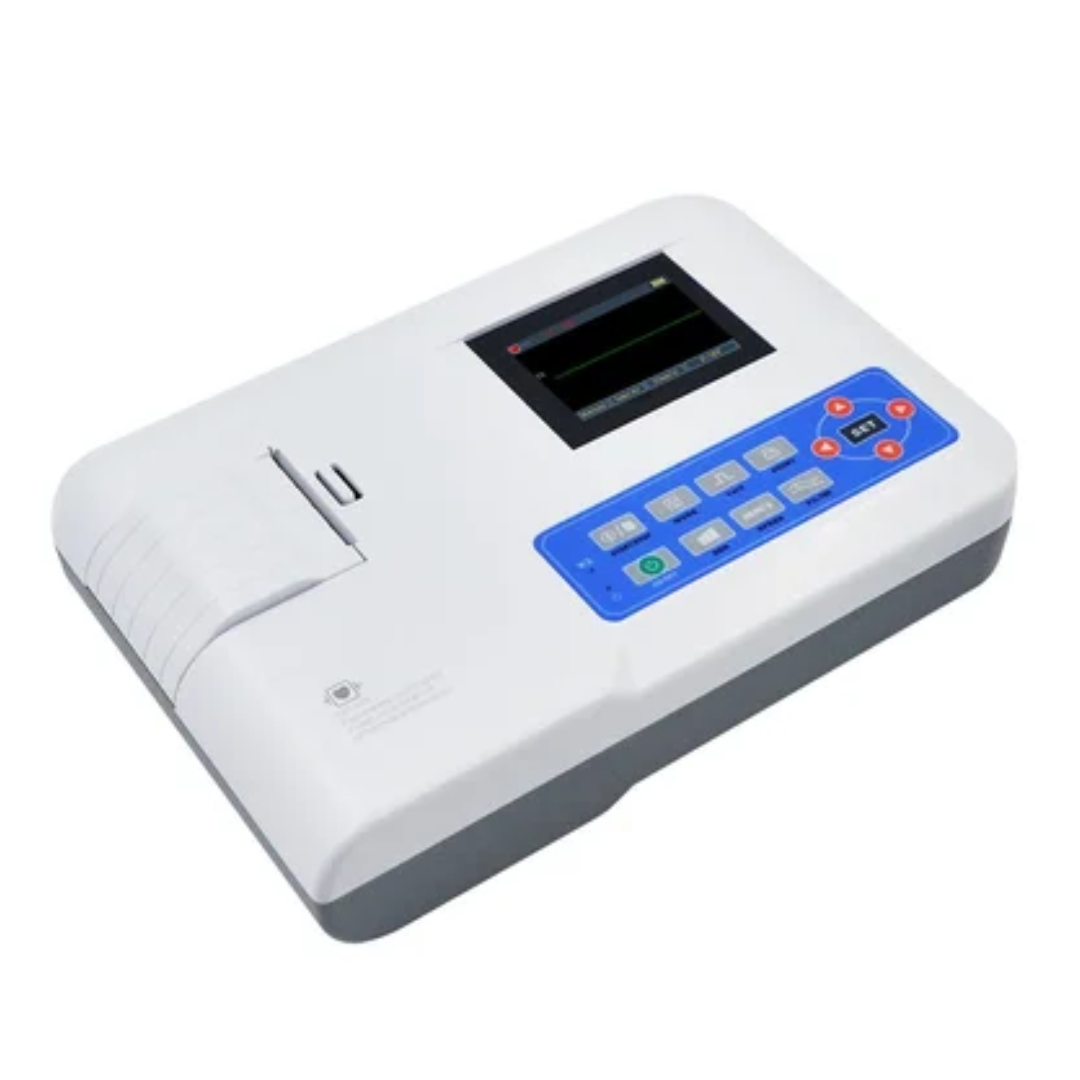

Contec ECG 100G Single Channel
₱28,000.00
Description
key features of CONTEC 100G Single Channel ECG Machine:-
- High-resolution thermal printing array system
- Frequency response is as high as 150Hz
- Capable of printing continuously on channel trace and annotations including lead mark and parameter
- such as sensitivity, paper speed and filter operation status
- High resolution digital filter inhibits baseline drift without affecting ECG waveform
- One-touch operation
- Concept of floating input circuit meets IEC safety standard
- Rechargeable battery, supporting more than 50 patient examinations
- Lead Standard: 12 leads
|
Input Circuit |
Floating; Protection against Defibrillator effect |
|
Lead |
Standard 12 Leads, Lead change automatically |
|
Patient Current Leakage |
<10μA |
|
Input Impedance |
≥10ΜΩ |
|
Calibrating Voltage |
1mV±3% |
|
A/D Conversion |
12 bit |
|
Frequency Response |
0.05Hz~150Hz (IEC) |
|
Time Constant |
>3.2seconds |
|
CMRR |
>80dB
>100dB (with filter) |
|
EMG Filter |
35Hz (-3dB) / 25Hz (-3dB) |
|
Sensitivity |
1/2, 1, 2 (cm/mV), Conversion Deviation≤5% |
|
Recording System |
Thermal-array
8 dots/mm ( vertical )
16 dots/mm ( horizontal, 25mm/sec ) |
|
Paper Speed |
25, 50mm/s±3% |
|
Recording Paper |
50mm,20m, high-speed roll |
|
Input Circuit Current |
≤50nA |
|
Safety Standard |
IEC class I, type CF |
|
Power Supply |
AC: 220V / 110V, 50/60Hz
DC: 12V rechargeable battery |
|
Skin Voltage Tolerance |
±300mV |
|
Noise Level |
<15uVp-p |
|
Dimensions |
310 mm×230 mm×70 mm |
|
Dimension of Packing |
400 mm×280 mm×160 mm |
|
Weight |
2.75 kg |
- 1 no. Of ECG Cable
- 1 Set of Bulb Electrode
- 1 Set Clamp Electrode
- 1 no. of Power Cable
- 1 no. of Earthing Cable
- User Manual
